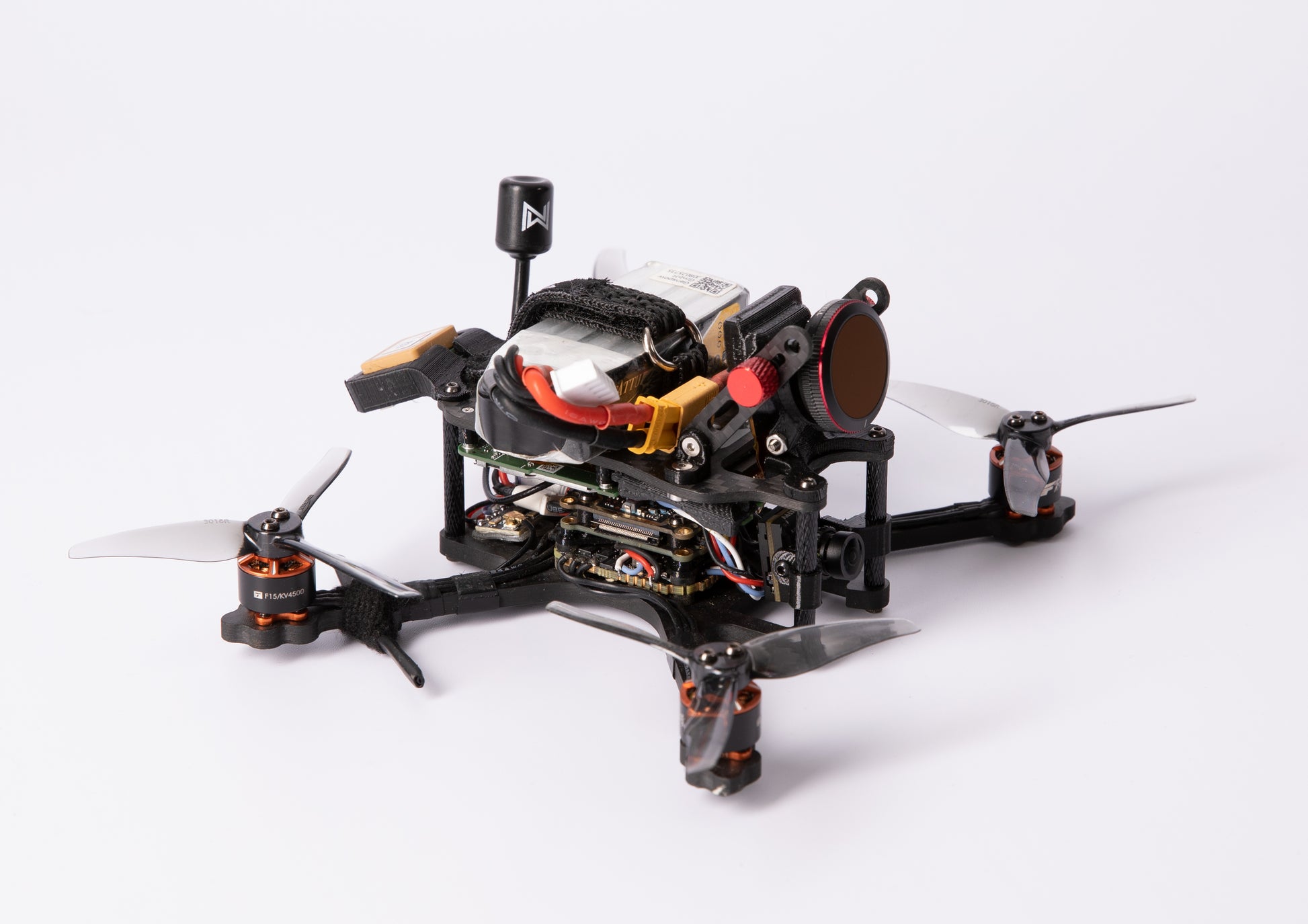

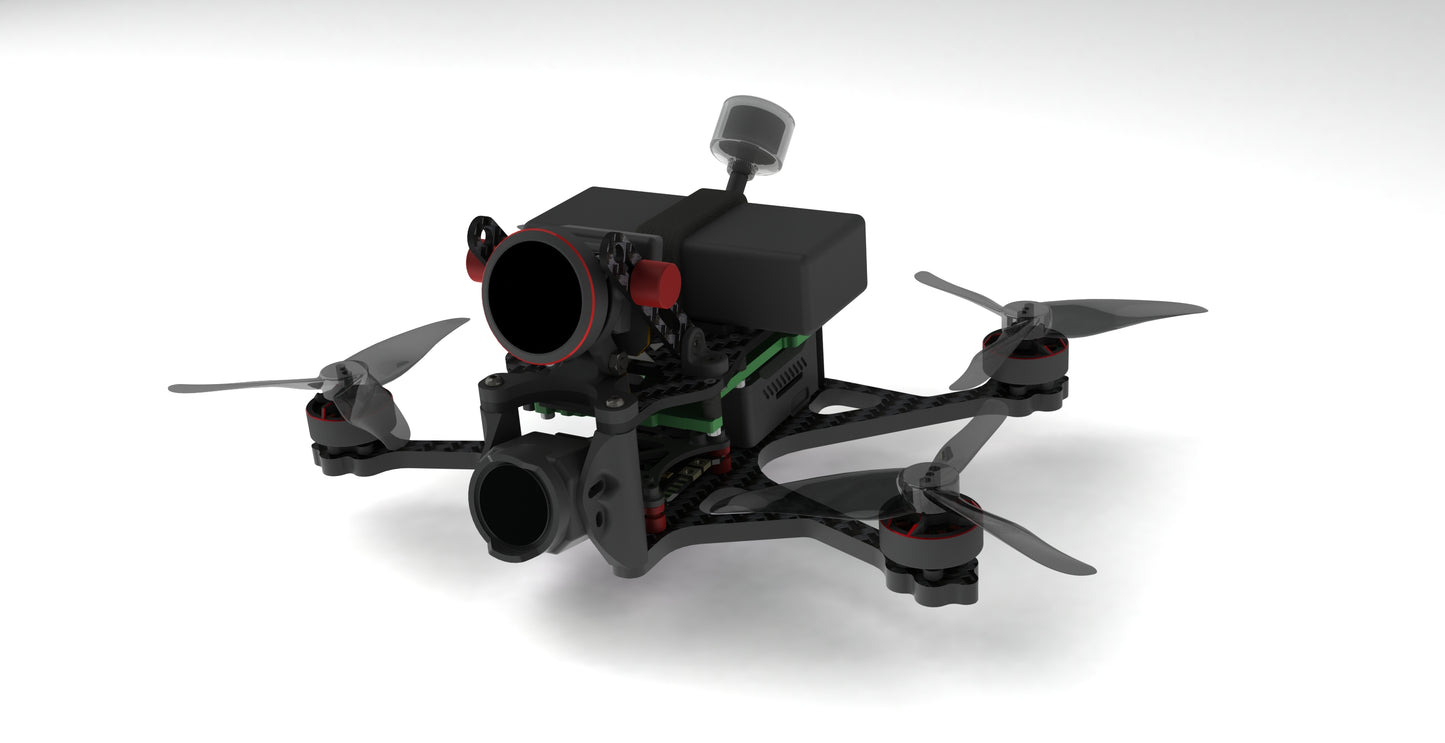

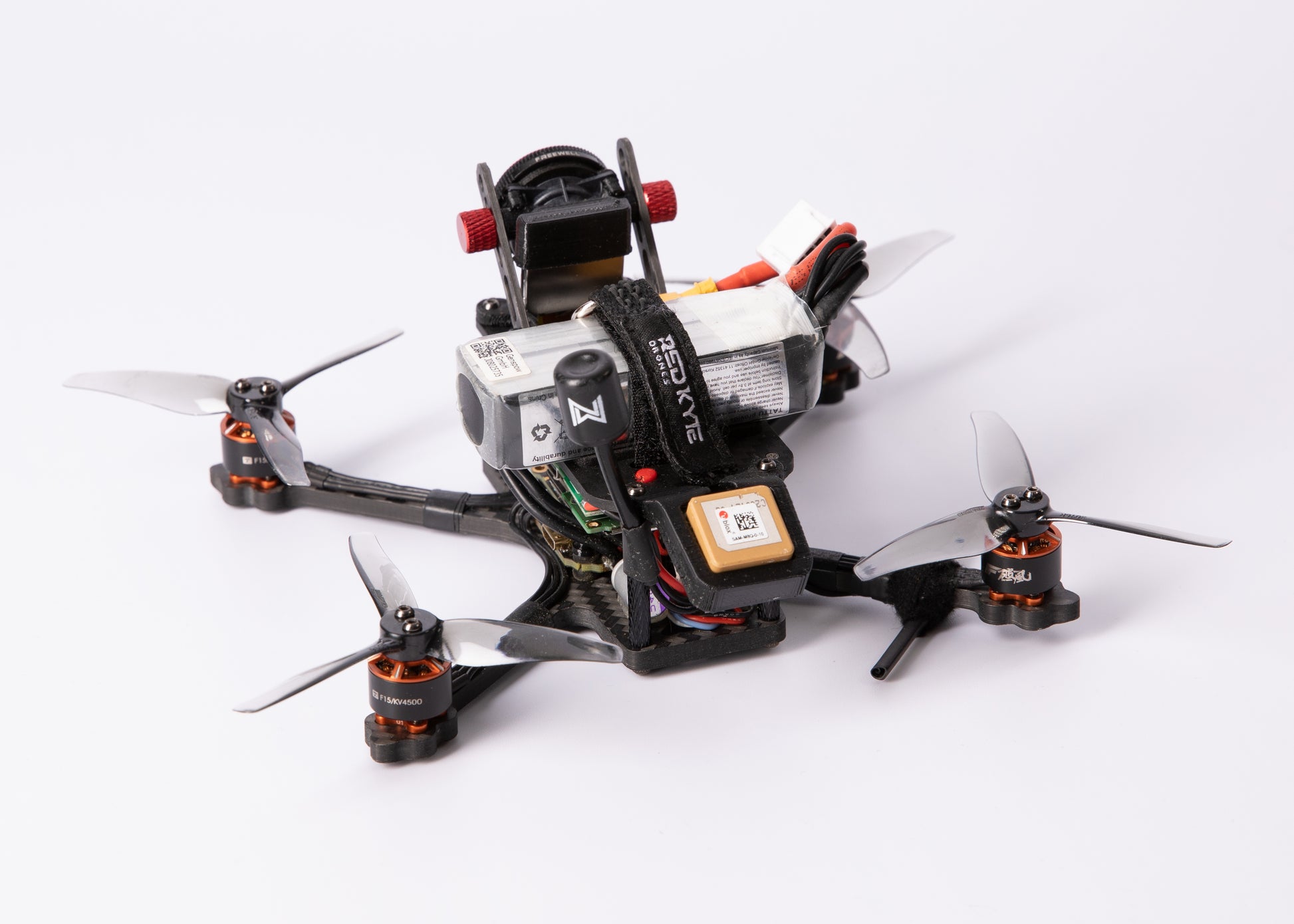

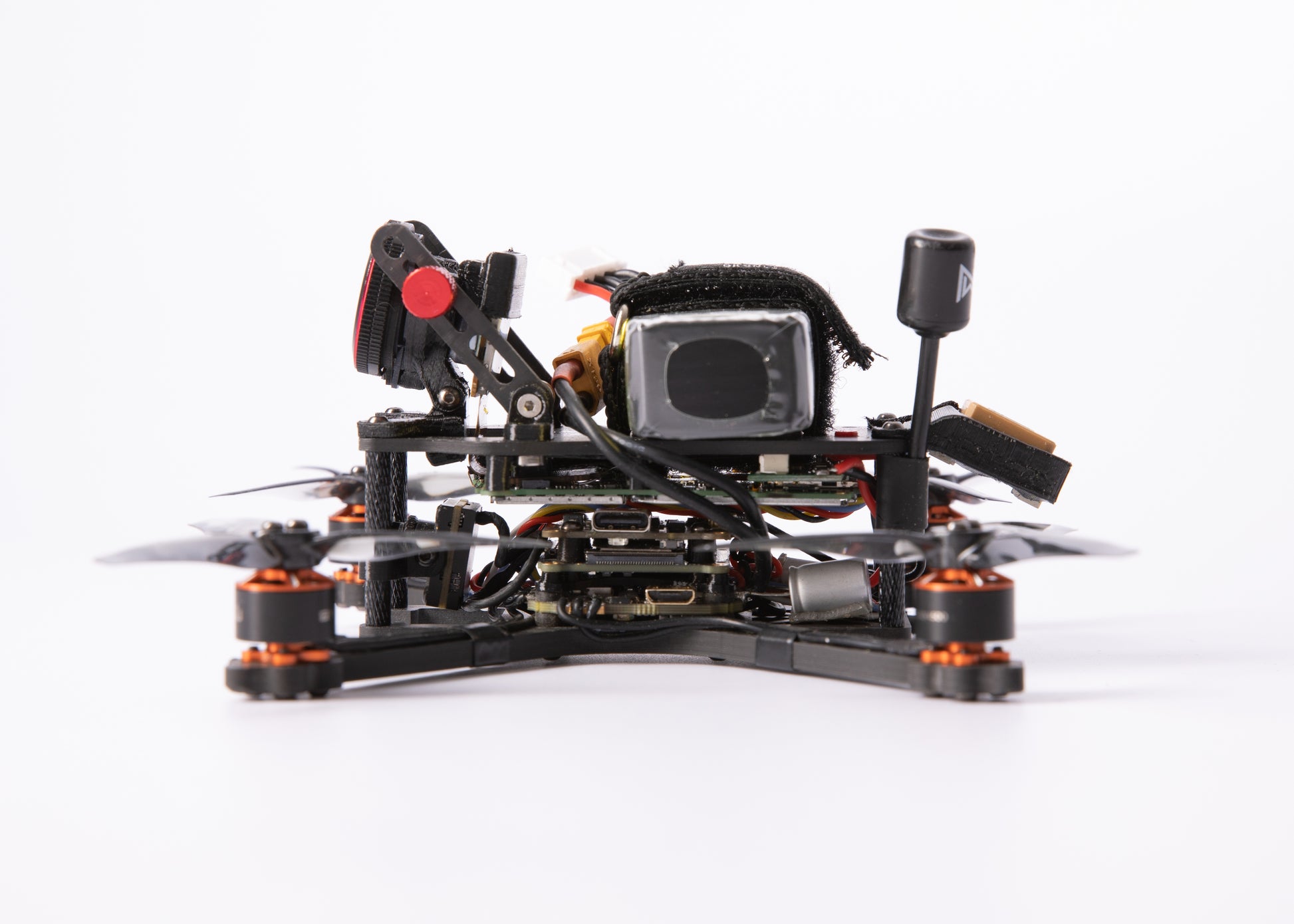

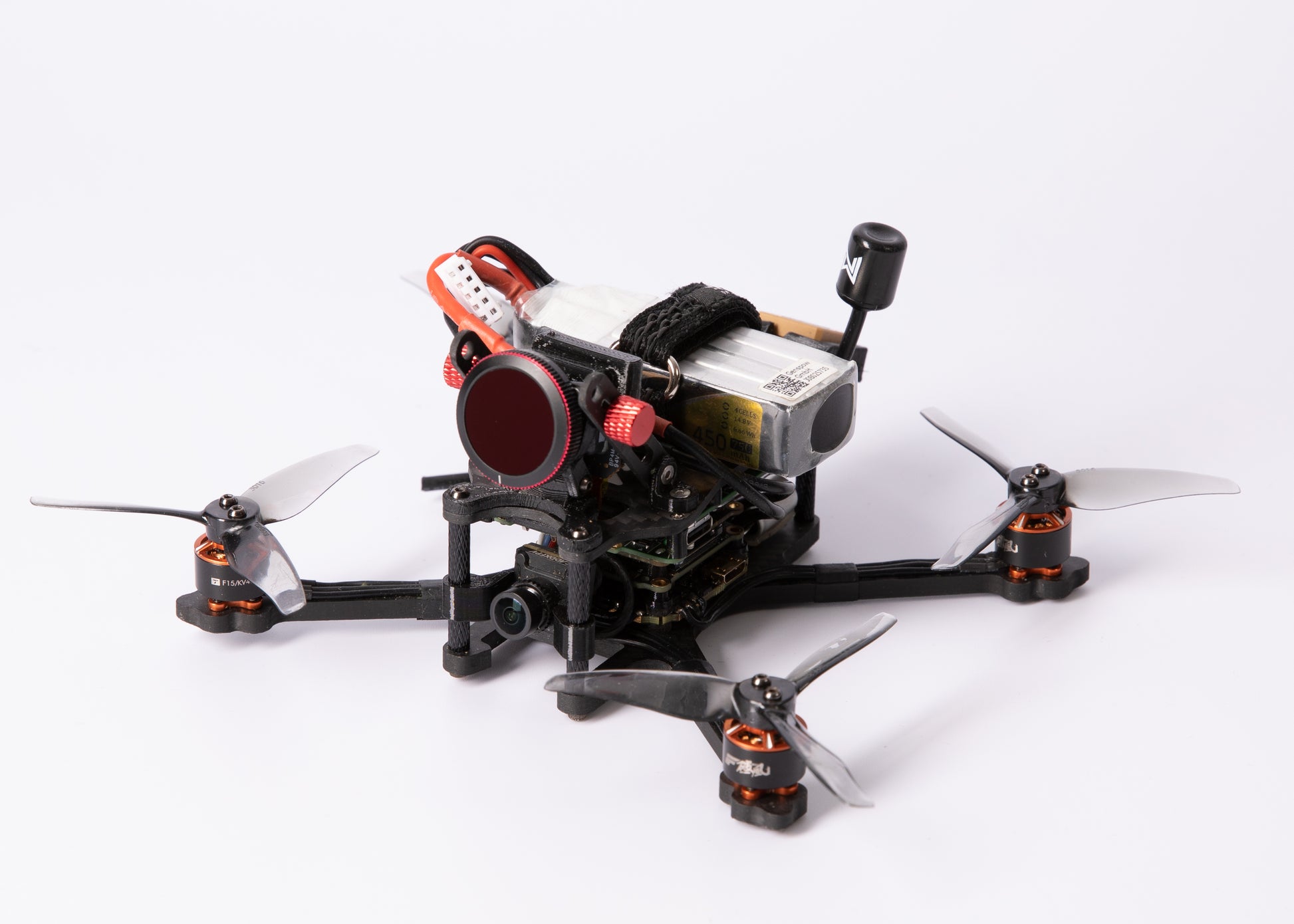

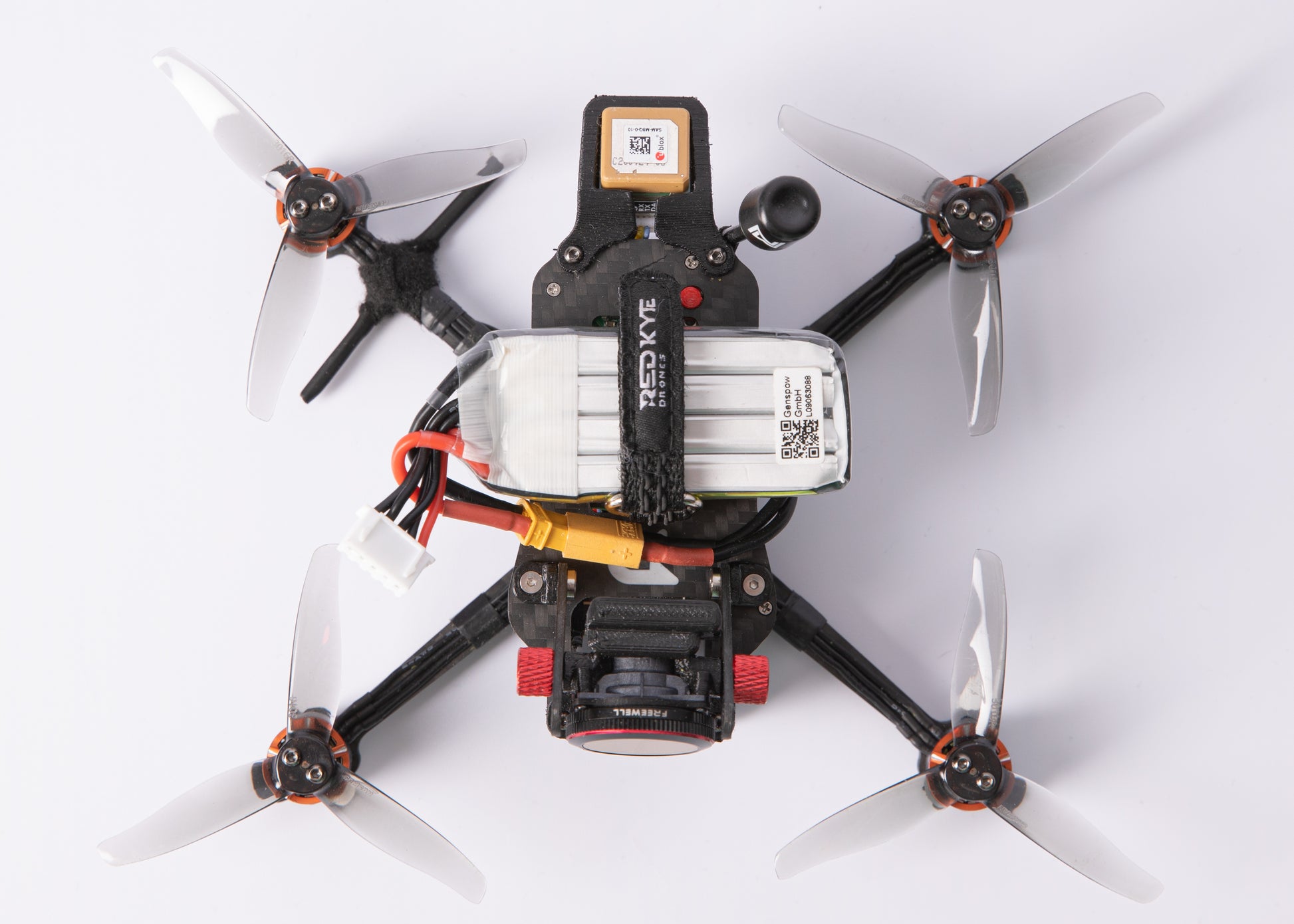

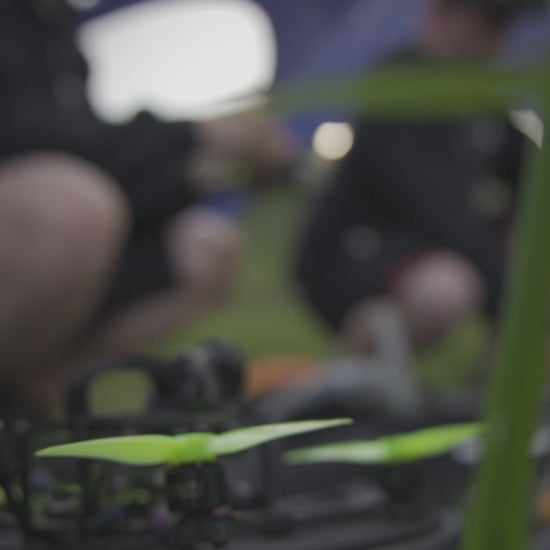

XDREI Kit

Our first official product release already played a huge role in video shoots at RED KYTE Media when it was just a prototyped concept. It's small, agile and quiet, while also being the safest option if a fully ducted quad is not an option. If officials are already happy when they read sub 250 in your documents, they will cheer with joy over a sub 200 quad.



We are sure you will love it just as much as we do!



Containing:

• Frame (Top Plate, Bottom Plate, Cam Braces)

• PCB extension

• 3D Prints

• Standoffs

• Screws, Nuts, Pressnuts

• LiPo Strap

• Battery Foam Pads

• Manual

• List of recommended parts for the build

• Support



Not included:

• GoPro Hero 9, 10 or 11 or any other camera

• Caddx Vista or any other video transmitter

• Motors, AIO Board or any other electronics

• Anything besides what is listed under "containing"



AUW

• With "Tattu 4S 450mAh 75C long version": ≈ 190 grams

• With "Tattu R-Line 4S 550mAh"  ≈ 210 grams

- You can go the extra mile with aluminum screws, to optimize the AUW even further



Please note

• You will void the warranty on your GoPro and Caddx Vista when you "strip" them

• A naked Vista has worse thermal characteristics due to the missing heat sink. If there is a long timeframe between powering on and takeoff, arm the quad while it sits on the ground. The propellers will provide enough airflow for the Vista not to overheat. More information on this can be found in Joshua Bardwells Video about naked Vistas

• Refrain from applying conformal coating to the Vista. This will inevitably lead to overheating issues, even when it's in the air. We are currently testing a solution to implement a fan, which could make it possible to use a coated Caddx Vista

Downloads

You can find all available, common 3D-printable spare parts as well as all documents and everything else worth downloading here: https://bit.ly/REDKYTEDronesPublic



Recommended Parts

You will also receive this as a separate PDF via Email after placing an order (Only works if opted-in to the Newsletter)

• AIO

- iFlight Beast F7 55A V2 AIO

- Flywoo GOKU GN745 AIO BL_32 40A V1.2

- Beta FPV Basic Toothpick F4 2-4s AIO 20A v3 (BlHeli-S)

- Foxeer Reaper F745

• Motors

- T-Motor X RED KYTE 1106 4300KV (To be released soon)

- T-Motor F15 1106 4500KV

• Batteries

- Tattu 4S 450mAh 75C long version

- Tattu R-Line 4S 550mAh

• VTX and FPV Camera

- Caddx Vista Nebula Pro Nano

- Caddx Vista Nebula Pro

* The frame was designed in a way to be able to also fit a regular sized DJI camera

• Camera

- You will need a GoPro. Works with Hero 9, 10 + 11

• BEC

- NameLessRC BEC 2-6S Naked GoPro 9-10 (Or GoPro 8 variant if you intend to use XDREI with a Hero 8)

• Propellers

- Gemfan 3016-3 (Also available here)

• ND-Filters

- Freewell Mavic 2 Zoom



If you are unsure if this is for you or have any questions regarding the kit, please drop us a message before placing an order

You can write us an Email via support@redkytedrones.com or via IG: @redkytedrones
